Water Boiler


One Truma water boiler, checking out the sitting behind the drivers seat before cutting any holes in the van wall.

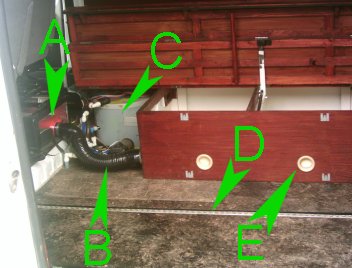

A - Propex gas space heater, permanently sited under the removable drivers seat..
B - Air ducting tube from Propex gas space heater under drivers seat. This feeds warm air along the 'bed box' (clothes storage area under main bed) and continues down the van to the shower/toilet pod. Behind this ducting sits the Whale water pump which maintains a pressurised system
C - Boiler now sited behind drivers seat. The boiler is the only item which can't be removed from the van 'load bay' area. Everything else can be easily removed to use the vehicle a goods carrying van.
D - Special aluminum tracking securely fixed to the floor. I have fixed two along the load bay floor so that I can quickly install bench seats if the need arises to carry extra people..
E - Heating vents to allow warm air into the living space of the van from the Propex heater.

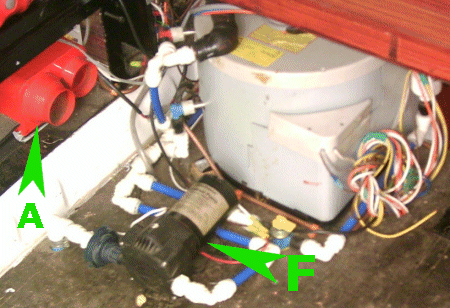

F - Whale water pump providing a constant pressurised water system at around 15psi.
G - Warm air ducting entry point from Propex gas space heater
H - Warm air ducting to room vent.
J - Warm air ducting to shower/toilet pod.

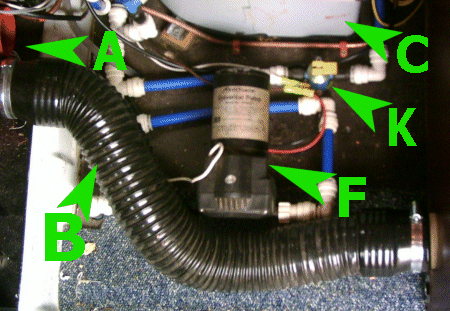

K - Drain valve, to drain boiler and water pipes

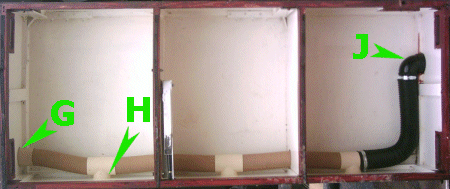

Below is the under double bed storage box showing the warm air ducting.
